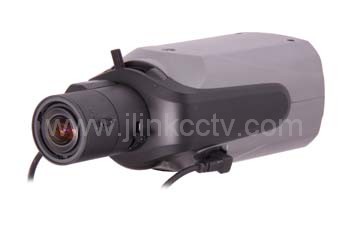

JL-9918P 1/3" High Resolution WDR Box Camera

Features
*Enhanced image quality
*1/3" DPS image sensor
*High light sensitivity
*Progressive image capture
*Enhanced noise suppression
*Horizontal resolution: 540 TV lines
*ICR function for Day/Night switching
*Configuration via UTC commands
*AC24V / DC12V Dual Voltage
Specifications
| Pick Up Device |
|
Pixim 1/3-Inch Sensor Cmos |
| TV System |
|
PAL or NTSC |
| Image Pixels |
|
720H x 540 V |
| Scanning System |
|
Progressive Scan |
| Sychronization |
|
Internal / Line Lock (AC24V) |
| Transfer Rate |
|
PAL 50fps; NTSC 60fps |
| Frequency |
|
PAL 15.625KHz; NTSC 15.734KHz |
| Electronic Shutter |
|
Up to 1/1000,000 sec. |
| Resolution |
|
540TVL |
| Dynamic Range |
|
120 dB Max. |
| S/N (Y Signal) |
|
48db |
| Min. Illumination |
|
0.2Lux at F0.95, 50 IRE 0.04 Lux in NightMode |
| Video Output |
|
CVBS: 1.0Vp-p / 75 ohm |
| White Balance |
|
ATW/AWC/Manual (2000-10000 K) |
| IRIS/OSD |
|
Built-in |
| UTC Remote |
|
Yes |
| Day & Night |
|
Auto / on |
| AGC/DNR/BLC/Mirror |
|
Selectable |
| Privacy |
|
No |
| Lens |
|
Not include |
| Power |
|
DC12V (AC24V Selectable) |
| Operating Temperature |
|
-10to 50 Centigrade Degree |
| Net Weight |
|
270g |
|
